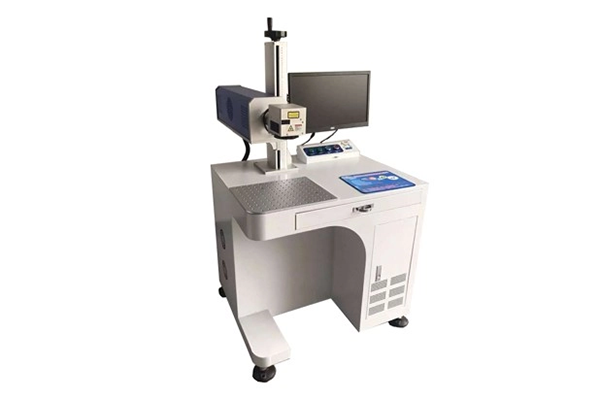

GF Fiber Flying Fiber Marking Machine
Fiber laser marking mainly uses the principle of laser thermal effect, and uses the principle of burning the surface of the workpiece product with the high heat generated by the laser to form the product mark. Mainly suitable for metal material and some plastic material signs. At present, the fiber laser marking machine is the most mature on the market, with the longest life and the most extensive application, and is widely used in the packaging industry.
content Us:+86 15253660692
fiber laser marking equipment, fiber laser marking machine, laser marking equipment, laser marking machine, Marker equipment, Marker machine, marking equipment, marking machine
Product Description
| Main Parameter | |
| Series | GF fiber flying fiber marking machine |
| Laser power | 20W 30W 50W |
| Laser wavelength | 1064nm |
| Mark depth | 0-3mm (depending on material) |
| Line width | 0.01mm |
| Minimum character | 0.3mm |
| Max marking speed | 7000mm/s |
| positioning accuracy | ±0.05 |
| Marking range | 110*110mm—200*200mm (customizable) |
| Cooling method | Air cooling |
| Power Specifications | 220V/50Hz |
| Equipment size | 1360*600*360mm |
| Weight | 80kg |
| 1. Laser: The laser can choose Raycus, Maxphotonics, JPT, etc., with stable laser output and long service life; | |
| 2.Galvanometer: The galvanometer adopts Jinhaichuang or wavelength high-speed scanning galvanometer system, which is suitable for large-scale processing needs, with fast processing speed and good effect; | |
| 3.Lens: It adopts imported photosensitive field lens, which is small in size and suitable for harsh environments. It improves the ability of the edge beam to enter the detector, so that the non-uniform illumination on the photosensitive surface of the detector can be homogenized; | |
| 4.Control board: mainly used in galvanometer laser marking machine hardware with fast data processing speed, high precision and high-speed and high-precision non-standard functions. | |
