550W dual-purpose laser welding machine
Discover our latest 550W dual-purpose laser welding machine, designed for highly efficient and precise metal sheet welding. This equipment combines high power with flexibility, suitable for a variety of metal materials such as stainless steel, aluminum, and titanium alloys. Its dual-purpose nature makes it not only ideal for precision welding but also for surface treatments, making it an excellent choice for your sheet metal fabrication needs.
content Us:+86 15253660692
Dual – Purpose Laser Welding Machine
It can effectively weld thin plates, with no discoloration or deformation on the front side. It has high welding efficiency and is easy to operate, so ordinary workers can learn and master it immediately.
Product Parameters
| Product Parameters | details |
|---|---|
| Laser Power | 550W |
| Laser Wavelength | 1064nm |
| Single Pulse Energy | 110J |
| Laser Welding Depth | 0.1 – 3.5mm |
| Pulse Width | 0.1 – 20ms |
| Laser Welding Frequency in Continuous Firing | 1 – 100Hz |
| Adjustable Range of Spot Size | 0.2 – 5.0mm |
| Power Consumption of the Whole Machine | ≤16KW |
| Power Requirement | 380V±10%/50Hz/40A |
| Standard Workbench | 2500*1200mm |
| Aiming and Positioning | Ccd synchronous high – definition imaging |
| Up and Down Stroke of Laser | ≥200mm |
| Horizontal Direction of Laser | 200 – 800mm |
| Fiber Length | 5m |
This model uses high-energy pulse laser to weld workpieces. The machine adopts imported foreign technology. The overall appearance is beautiful. It is equipped with a high-performance load-bearing workbench, is easy to operate, and has a high cost performance.
Configuration parameters:

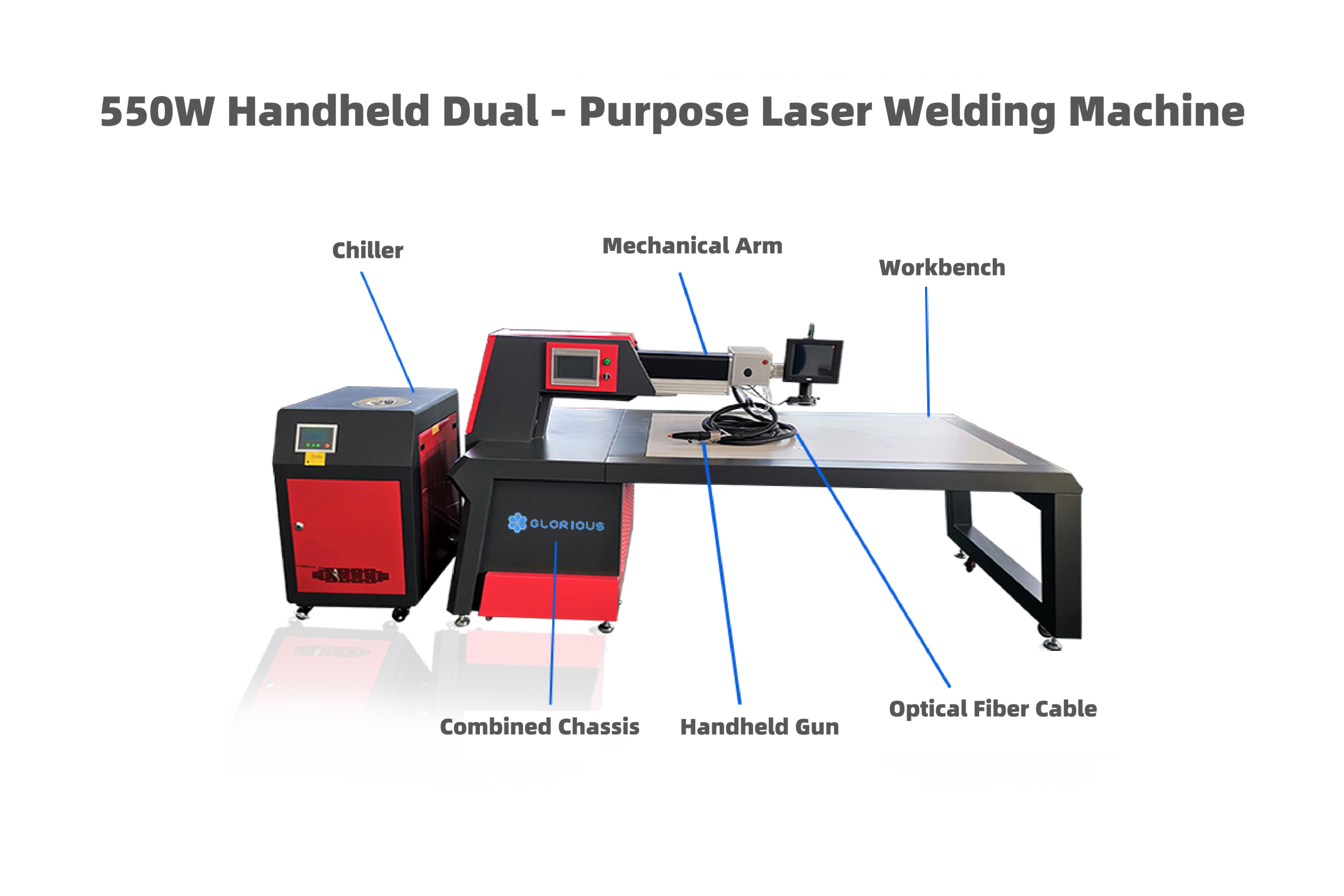

- Components: Chiller + Main part of laser power supply + Laser arm + Workbench + Optical fiber cable + Handheld gun
- The laser power supply adopts the well-known brand Zhonggu power supply, matched with high-end quality crystals, resulting in faster and more solid welding speed.
- Imported optical cables and well-known brand optical fiber handheld welding guns are used.
- High-quality cavities are adopted, which greatly enhance the output power and stability.
The product has a wide range of applications
Stainless steel precision characters, stainless steel decorative strip welding, titanium gold, rose gold, and black titanium gold can all be welded and processed.

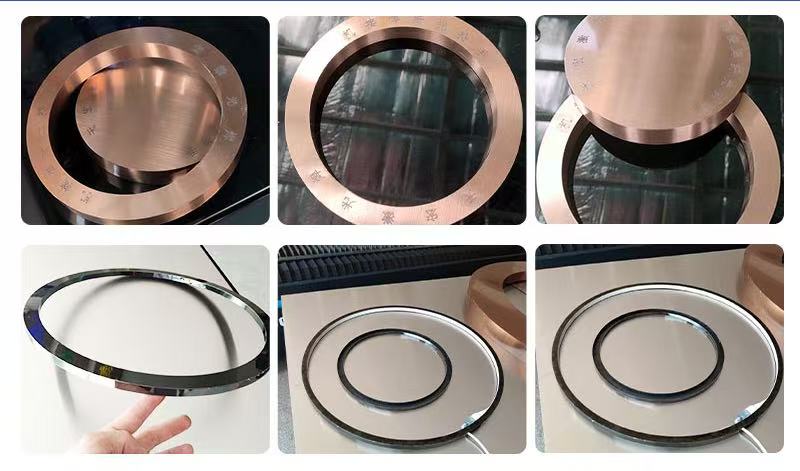

Sample Images of Welds Made by Dual-Purpose Laser Welding Machine
